12V 100Ah LiFePO4 Lithium Battery Manufacturer Factory OEM

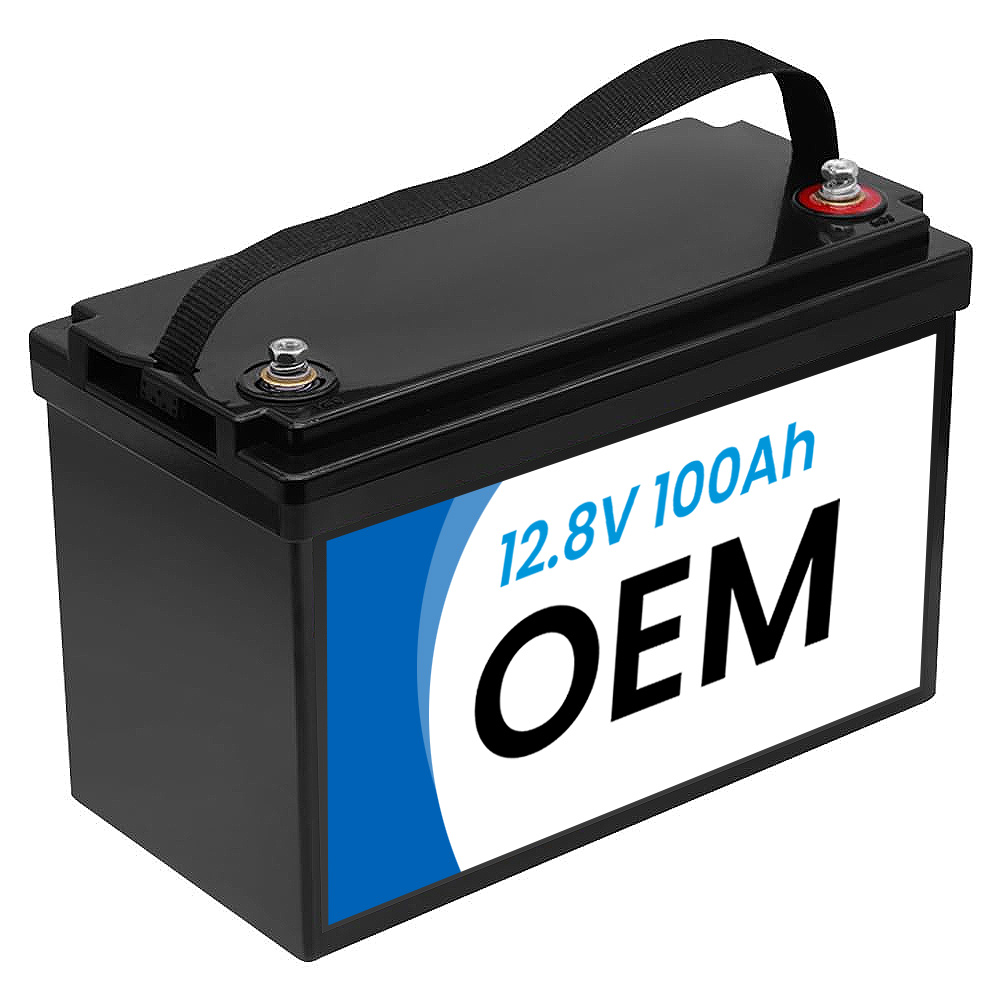

12.8V 100Ah LFP Lithium Battery Factory


Bluetooth APP

Use Bluetooth APP to remotely monitor the status of lithium batteries, including SoC, or connect to WIFI. Bluetooth function optional.

Self-heating

Self-heating function allows lithium batteries to be charged correctly at -20°C, the battery works well in winter. Self-heating function optional.

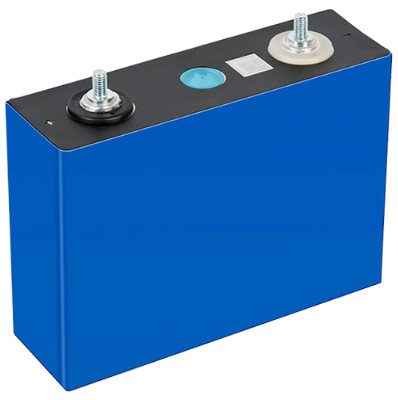

REPT / EVE LiFePO4 Lithium Cells

Using 3.2V 100Ah EVE Grade-A LiFePO4 lithium cells, >5000 cycles @80% DOD 0.5C

About us

We are a China lithium battery pack factory specializing in the production of lithium batteries for 15 years, located in Dongguan, Guangdong, China.

We have advanced lithium battery production lines, including lithium battery automatic welding production lines, lithium battery cell plasma cleaning, 100% full aging, drop and shockproof testing equipments, etc., with ISO9001 certification, and our products have passed UN38.3 certification. We do OEM production for many brands in Europe and Africa.

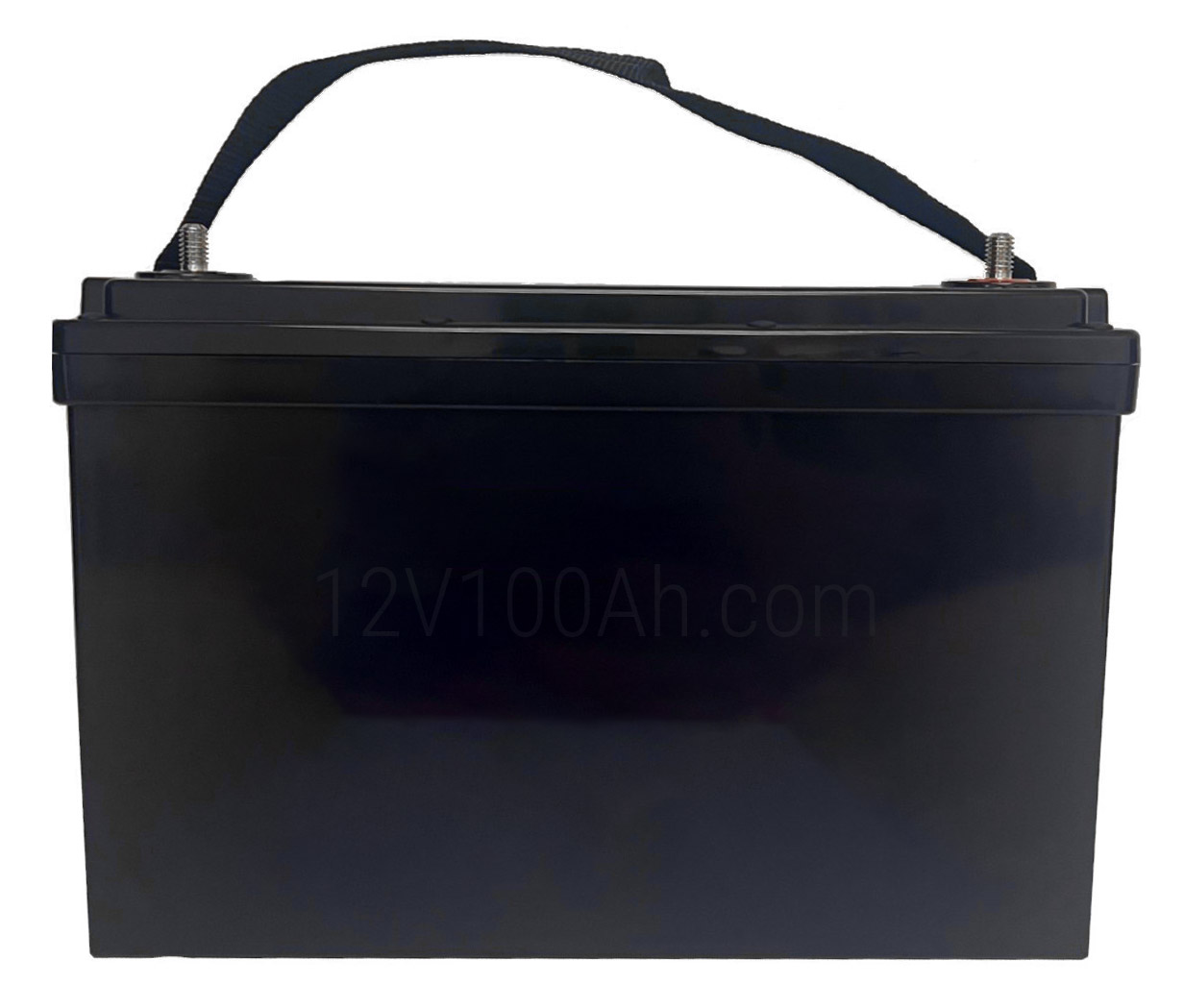

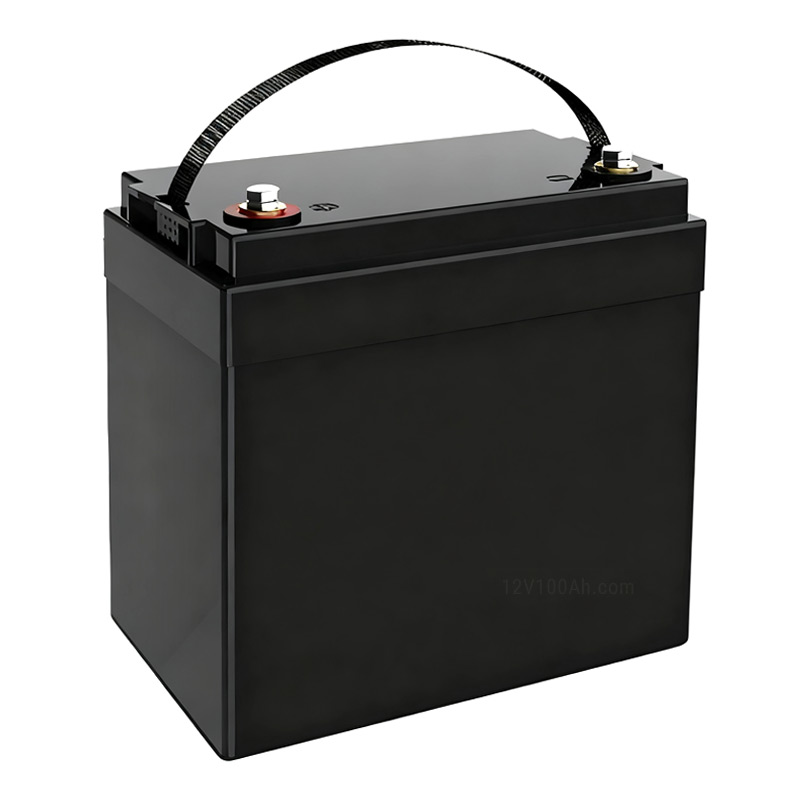

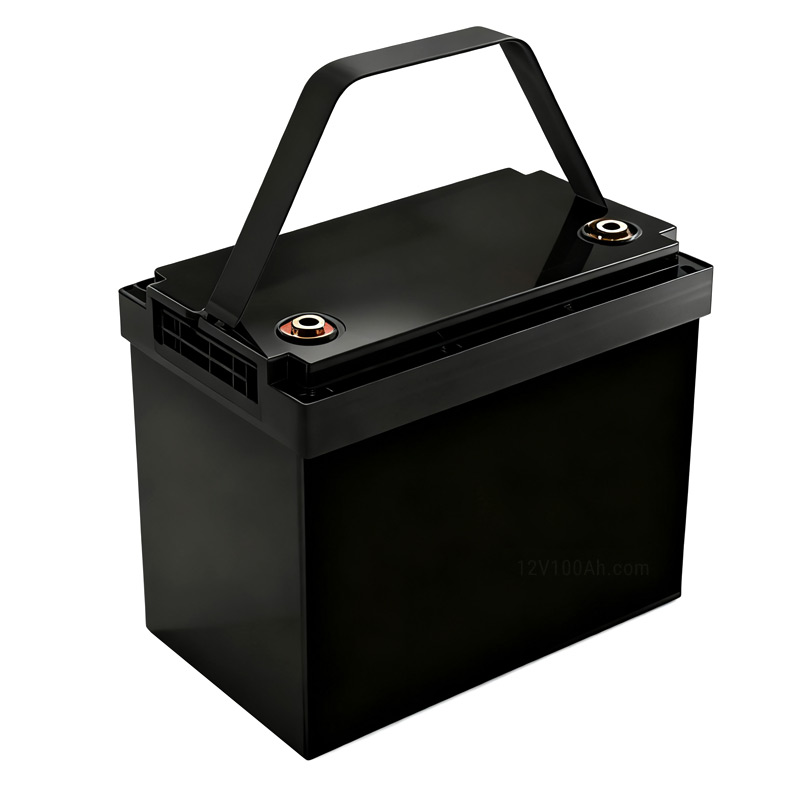

12V 100Ah LiFePO4 Lithium Battery List

BATTERY SPECIFICATIONS
Cell Type
: Lithium LiFePO4 Prismatic
Warranty: 5 Years
Cycle Life: 4000 cycles at 100% DOD
6000 cycles at 80% DOD
15,000 cycles at 60% DOD
Nominal Voltage: 12.8V
Rated Capacity: 100Ah
Energy: 1280Wh
Discharge Cut-off Voltage: 10V
Max. Parallel and Series: 4P / 4S
Internal Resistance: ≤20mΩ
Certifications: UL1642, CE, UN38.3

BMS
BMS
: 100A
Max. Continuous Output Power: 1280W
Max. Continuous Charge Current: 100A
Max. Continuous Discharge Current: 100A
Peak Discharge Current: 300A (5 Sec.)

CHARGE
Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 20A (0.2C)

TEMPERATURE
Charge Temperature: 0℃ to 60℃ / 32℉ to 140℉
Discharge Temperature: -20℃ to 60℃ / -4℉ to 140℉
Storage Temperature: -10℃ to 50℃ / 14℉ to 122℉

UPGRADES
Self-heating: Optional
Bluetooth App: Optional
LCD Display: Optional

OTHERS
Terminals: M8 bolts
Weight: 22 lbs (10kg)
Size: L13 × W6.77 × H8.43 inches
L330.2 × W171.9 × H214.1 mm
BCI Group 31 (GP31)
Housing Material: ABS
IP Rating: IP65

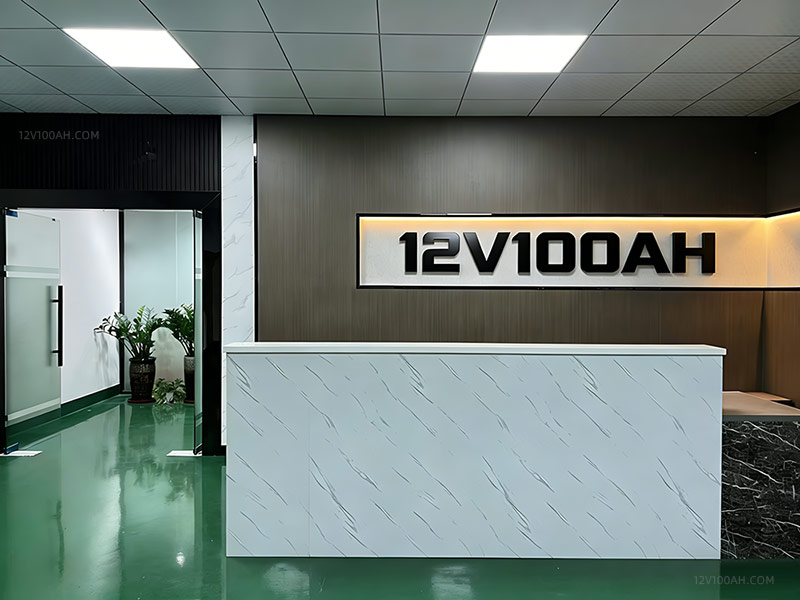

Our 12V 100Ah Lithium Battery Factory
Production Line

We have advanced LiFePO4 battery production lines

Automatic Laser Welding

We use automatic laser welding, precise welding of LiFePO4 lithium cell nickel connection sheet.

Manual Gluing, Good Waterproof

According to your needs, the filling process can be carried out to improve the waterproof and seismic performance of the lithium battery.

100% All Batteries Aging

Our lithium battery factory delivers all lithium batteries in an aging manner, not in a partial aging.

Get a Quick Quote

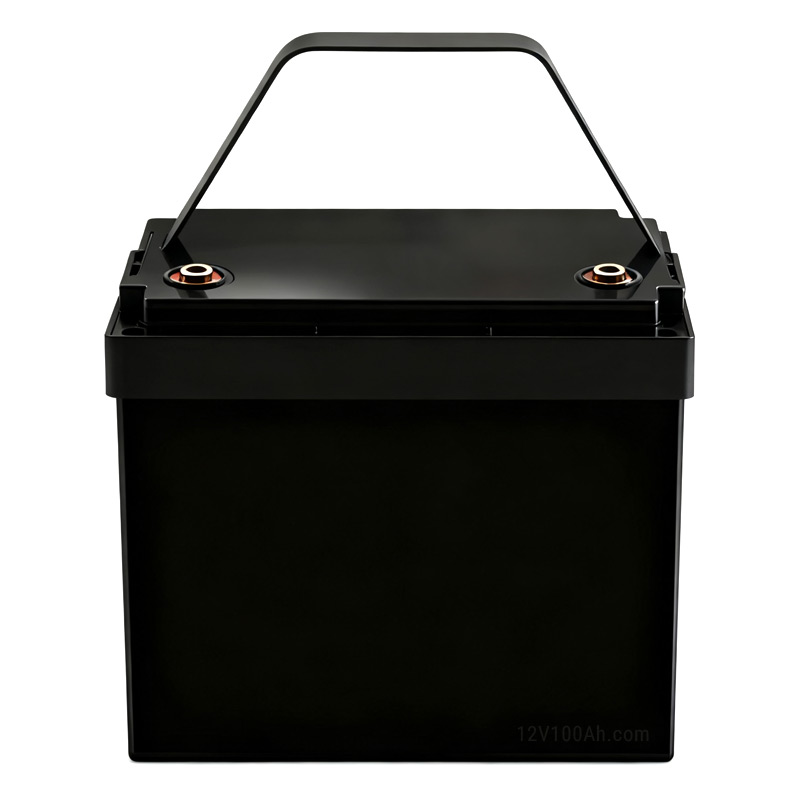

12.8V 12V 100Ah LiFePO4 / GP24 / Self-heating / Bluetooth App

Our Projects

Our customers come from Europe, Asia, South America and Africa.
